8051 C Code to Interface 7 segment - Common Anode

This code is a simple one . Here just a 7 seg display is attached to Port 0 of 8051 micro controller . The values can be calculated easily .

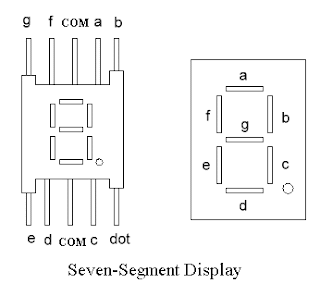

One unit of 7 seg display has 7 different leds as its segments and also a dot at the bottom left corner. Hence the 8 data lines are connected to P0 and the following values are passed to get the required number to be displayed on the display .

Common Cathode

Common Anode

There are two types of 7 seg. common anode and common cathode,depending upon which one u buy the values change . Just change those values according to the above table.you can refer data sheet to understand the exact difference between them.

CODE:

#include <reg51.h>
unsigned char array[]={0x40,0x79,0x24,0x30,0x19,0x12,0x02,0x02,0x78,0x00,0x18};  //common anode values
void main()
{
  unsigned char i;
  for(i=0;i<11;i++)
  {
      P0=array[i];
  }
}
